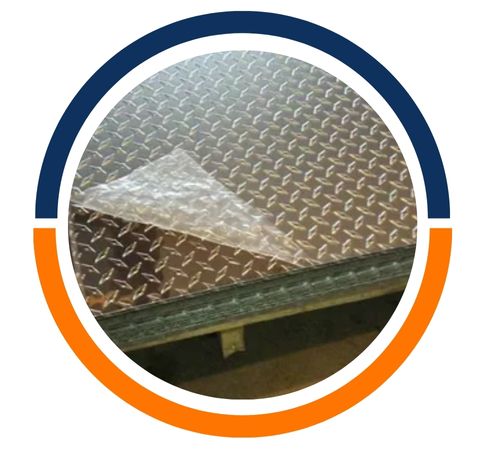

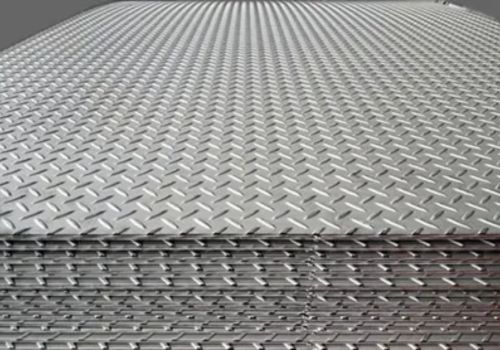

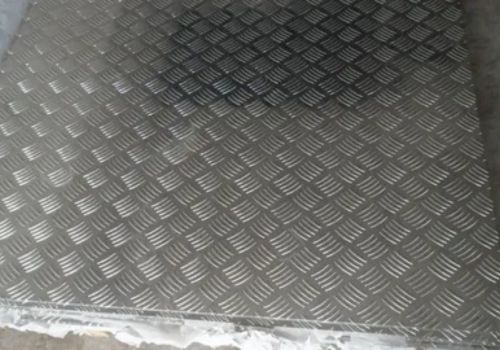

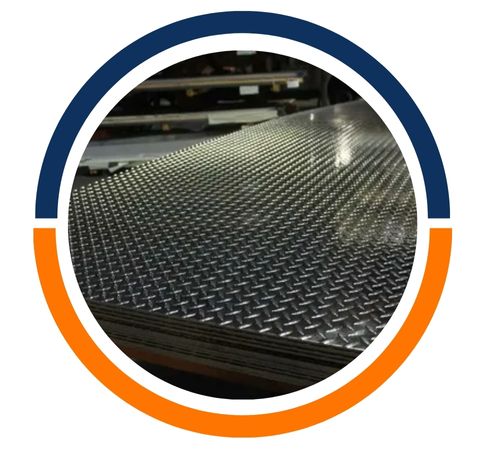

Maung Aluminium stands out as a reliable manufacturer and supplier of Aluminium 5083 Chequered Plates in Naypyidaw, Myanmar. They offer top-notch aluminum products that are built for strength, durability, and resistance to corrosion. With a strong focus on precision engineering and adherence to global quality standards, the company delivers Aluminium 5083 Chequered Plates that find their place in marine, transport, and industrial sectors. These plates are celebrated for their superb surface finish, skid resistance, and overall toughness, making them perfect for settings that require both functionality and visual appeal. This is why Maung Aluminium is a go-to partner for quality aluminum solutions.
The Aluminium 5083 Chequered Plates are made up of about 95% aluminum, along with 4–4.9% magnesium, 0.4–1% manganese, and trace amounts of chromium, silicon, and iron. They boast impressive corrosion resistance, particularly in marine and chemical environments. This alloy offers high tensile strength (270–300 MPa), good formability, and excellent weldability. Since it’s a non-heat-treatable alloy, it keeps its mechanical integrity after fabrication, making it perfect for heavy-duty and safety-critical applications.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H116,H321
Thickness : 0.5-300
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

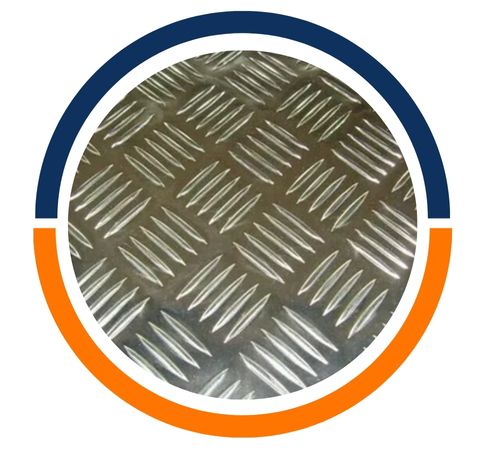

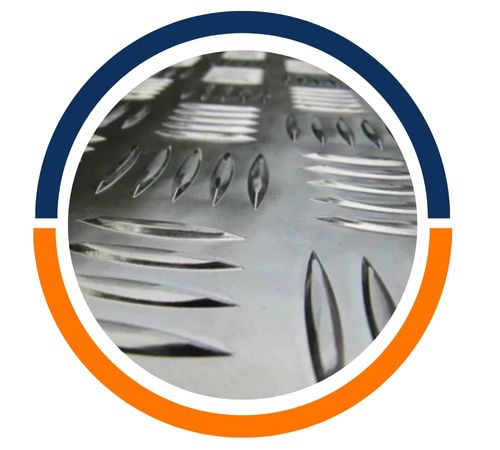

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
Maung Aluminium based in Naypyidaw, Myanmar is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5083 Chequered Plates to meet specific project needs. Our team at Maung Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@maungaluminium.com
These plates are commonly found in marine decks, vehicle flooring, stair treads, ramps, and industrial walkways, thanks to their anti-slip surface and corrosion-resistant features. They’re also essential in shipbuilding, offshore platforms, chemical plants, and transportation sectors where durability and safety are paramount. With their combination of structural strength and aesthetic appeal, these plates are ideal for architectural and industrial applications that require lightweight yet robust materials capable of performing well in tough environmental conditions.
